BRAKE CALIPER

Brake Caliper size D130mm H75mm W295mm
Disc Rotor size Φ295、Φ330、Φ350、Φ365
Piston diameter 36mm、40mm
Material Aluminum casting,Monobloc structure
Kit contents Brake Caliper,Caliper bracket,Brake line,Brake Pads
Overhaul possible(We also sell repair parts)
Price ¥298,000~ (Prices differ depending on the type of car and kit contents)
Application  pdf file
acrebrakecaliper

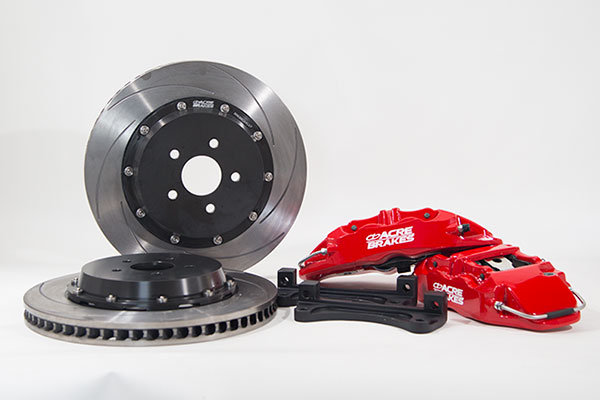

Lightweight, cast aluminum monoblock structure, slim size can be used from 16 inches (inner diameter 365 mm or more) to accommodate small wheel as much as possible.

The carving slit given to the rotor of the photo is optional. Usually, there are 6 normal slits

Wheel Another rotor recommended is 16 inch 295 mm, 17 inch 330 mm, 18 inch 350 mm, 19 inch 365 mm.
330 mm spare rotor reference price ¥ 35,000 / 1 piece, sold as 2 set
For HONDA GK5 FIT/JAZZ Brake Caliper Kit>>CLICK!
